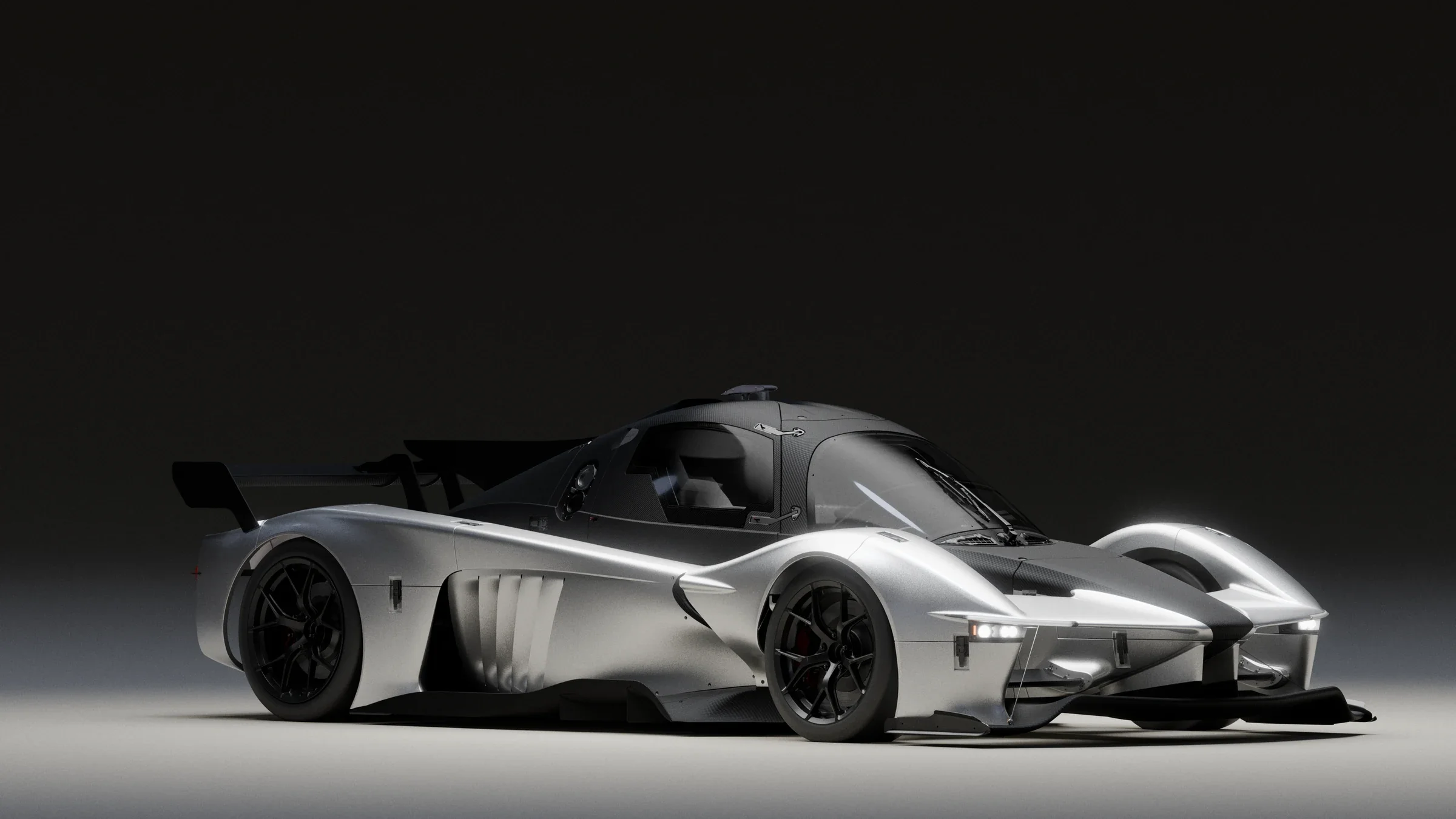

LIGHTNESS, UNBOUND. SPEED, DISTILLED

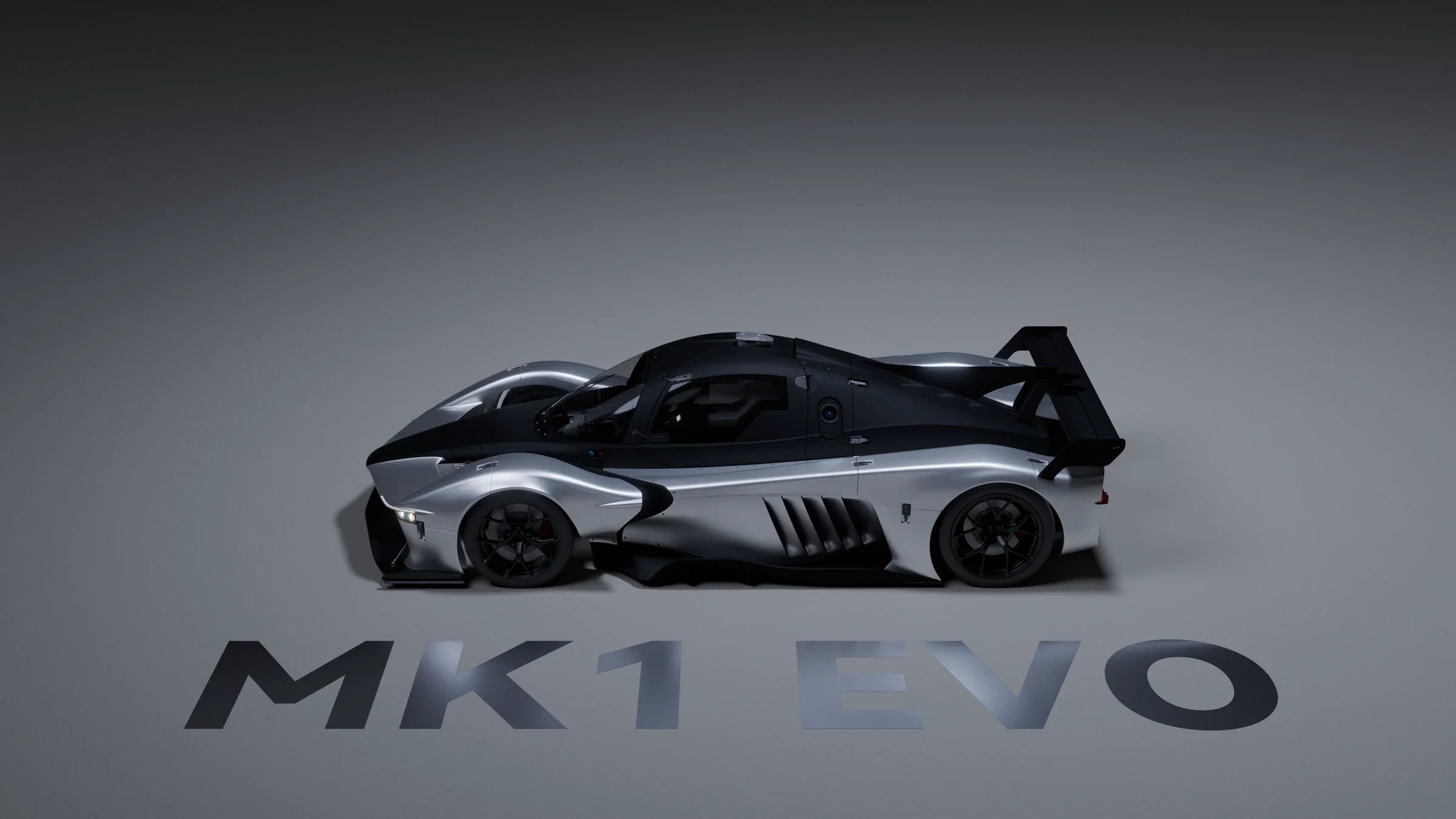

NXT MK1 EVO
760 kg. 451 hp. A fully developed aero package—built for the track.
SINGLE-SEAT PROTOTYPE
*estimated delivery 2027 Q1
02 / PRODUCT POSITIONING
THE EDGE OF SPEED, DELIVERED WITH TOTAL CONTROL
451 hp, 760 kg and a complete aero package— tuned to work in instinctive harmony with the driver. Each lap builds familiarity and the confidence to push closer to the limit.
ALL THE EDGE. INSTINCTIVE CONTROL.
03 / KEY FIGURES
THE NUMBERS MAKE THE INTENT CLEAR.
Compact dimensions, 451 hp at 760 kg, and aerodynamics developedas an integrated performance system.
760
kg*
Operating fluids included; fuel excludedPeak power at the crank451
HP
Peak torque550
N·m
Aerodynamic load (ClA)3.6
CIA
* Includes operating fluids; excludes fuel. Specification as shown.04 / POWERTRAIN
451 HP. SIX GEARS. ONE GOAL

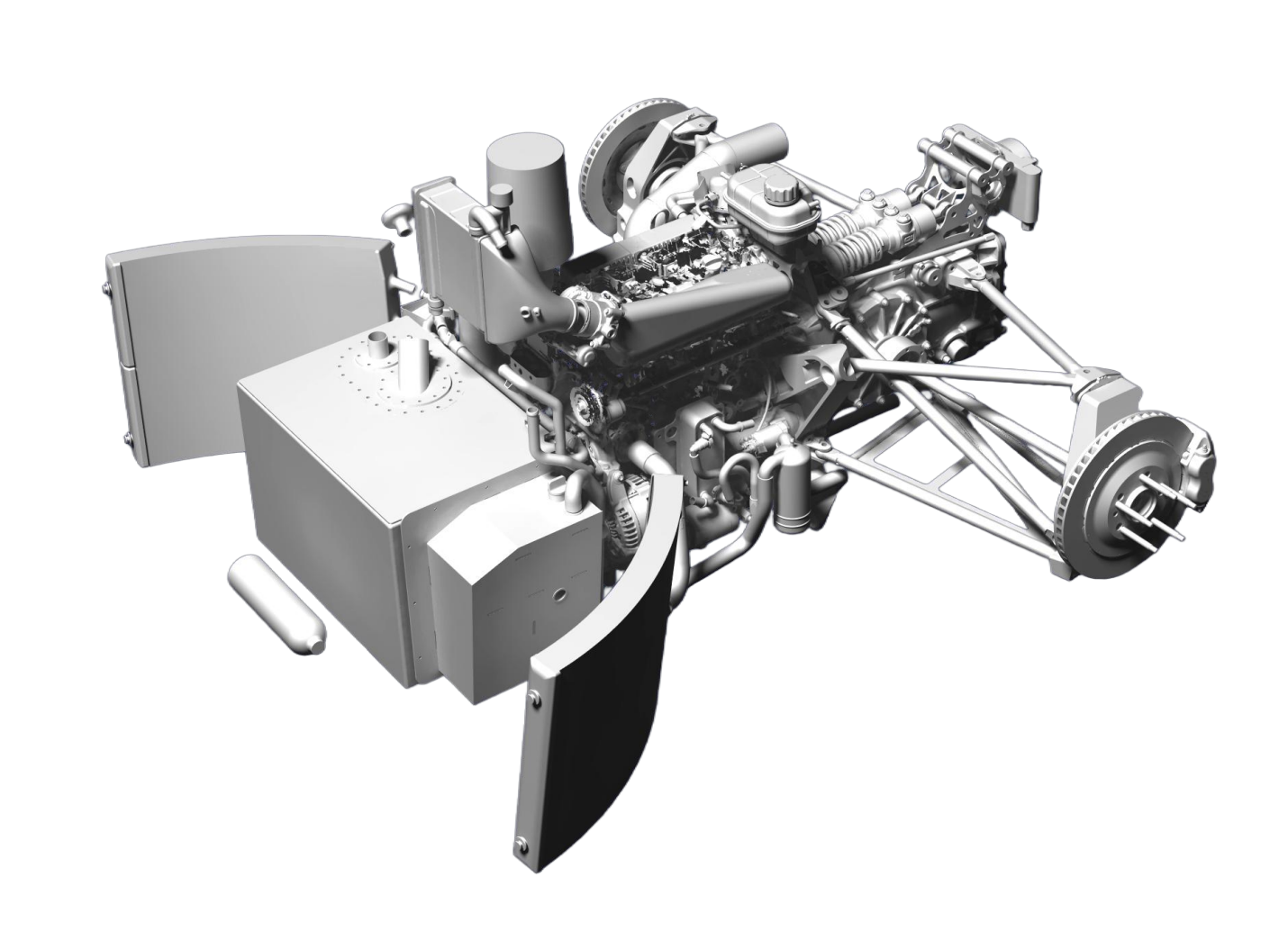

A compact turbocharged inline-four, six-speed sequential gearbox and electronically controlled pneumatic shifting deliver a direct, precise powertrain engineered for sustained track use.
ENGINE
Twin-scroll turbo · direct injection Marelli Motorsport ECU Titanium post-turbo exhaust Dual-channel radiators · water-to-air intercooler2,261 cc
TRANSMISSION
6-speed sequential gearbox · electronically controlled pneumatic shifting · Powerflow multi- plate limited-slip differentialHEWLAND TMT- 200
05 / LIGHTWEIGHT CONSTRUCTION
EVERY KILO COUNTS.
760
kg*

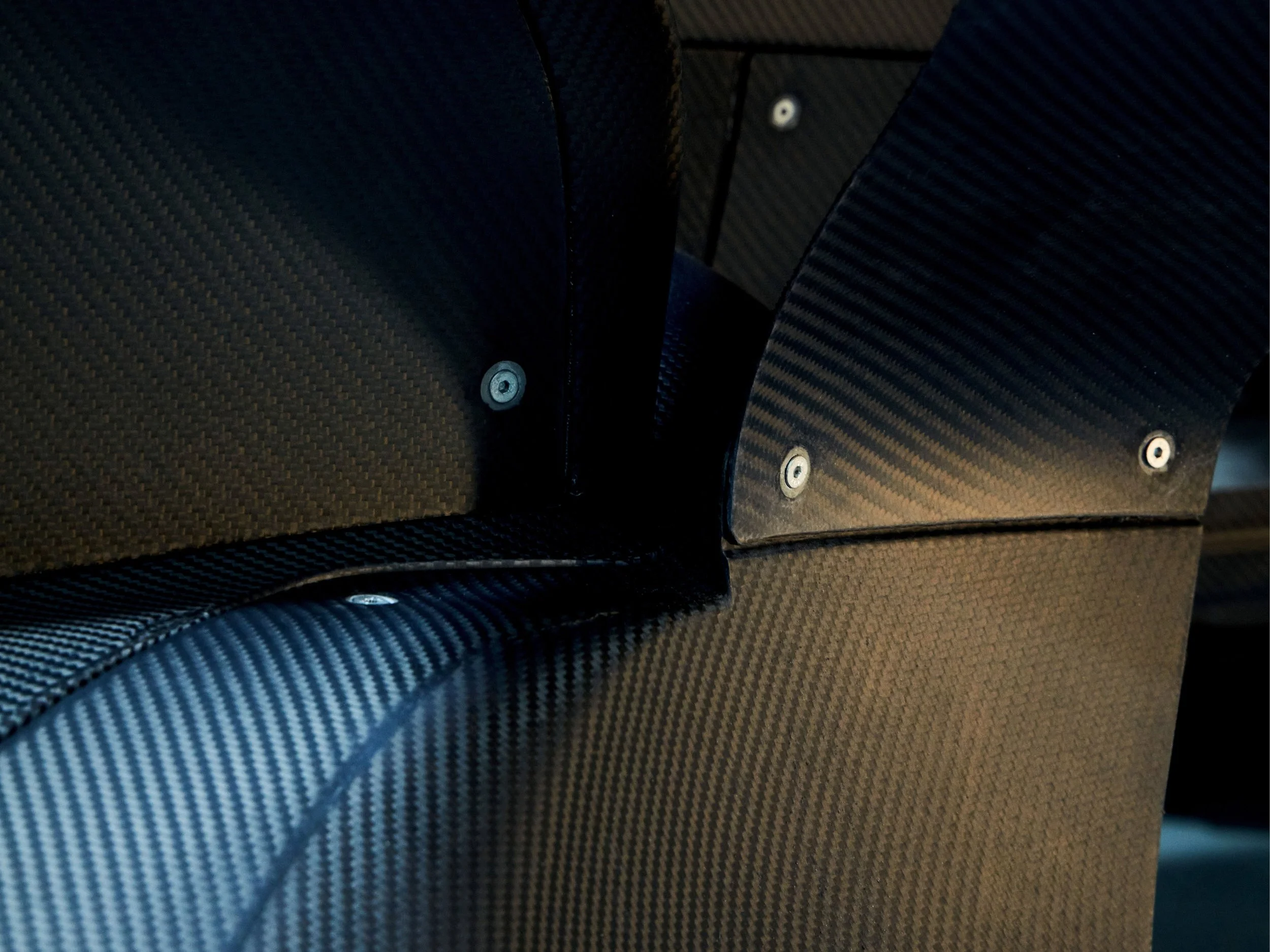

A spaceframe chassis, CFRP bodywork, polycarbonateglazing and a lightweight wiring harness worktogetherto reduce mass while supporting performance, durability and serviceability.
SPACEFRAME CHASSIS | CFRP BODYWORK | POLYCARBONATEGLAZING
* Includes operating fluids; excludes fuel.

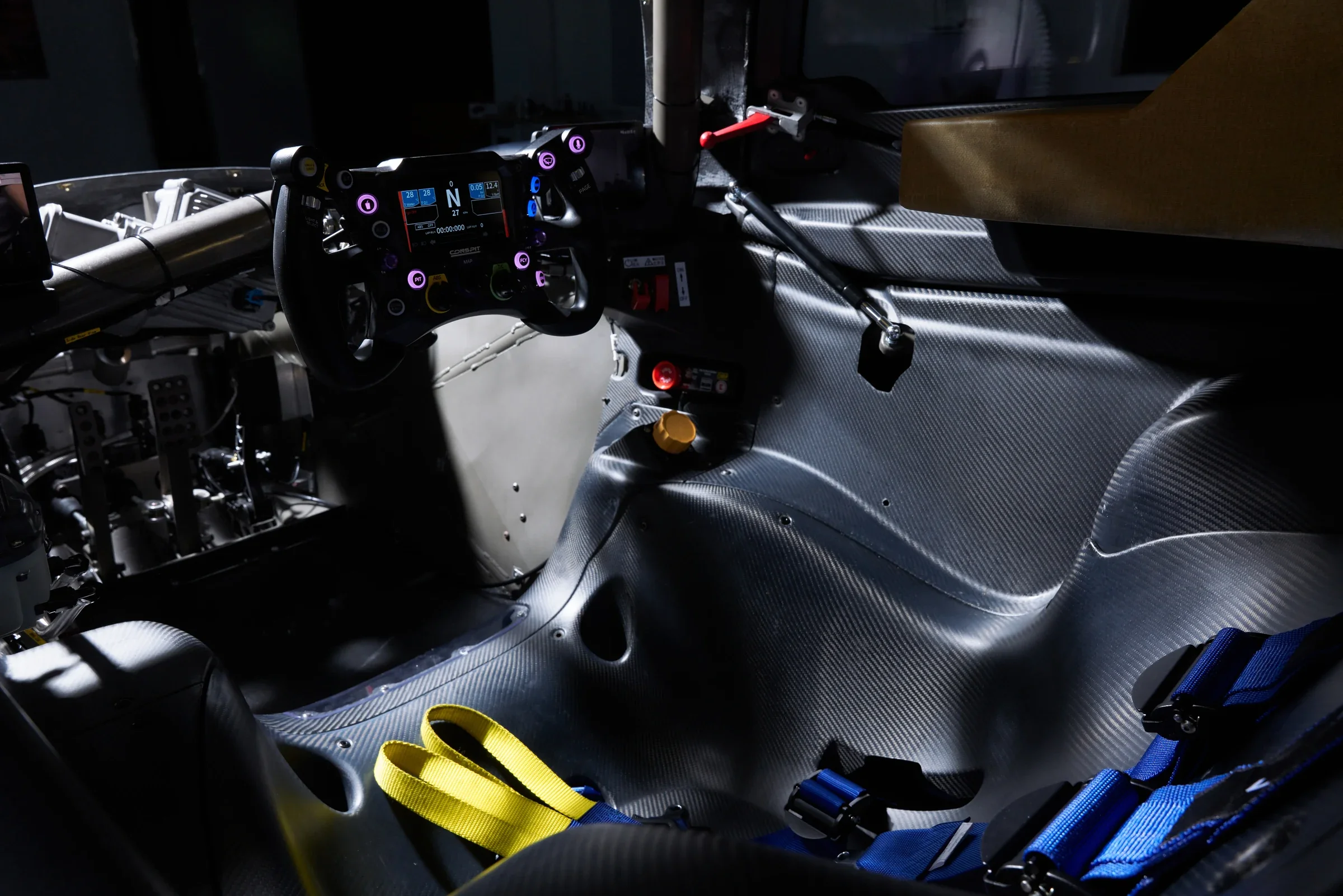

06 / COCKPIT
COHERENCE IS A QUIET KIND OF ORDER.
From body surfaces to cockpit touchpoints, every element works with the next. Materials, sightlines and controls speak one language, so the driver knows instinctively where to focus.
01
ONE LANGUAGE THROUGHOUT
Bodywork, cockpit and details follow one design language.
02
SHAPED AROUND THE DRIVER
The seat, pedals and steering column define a driver-centered layout.
03
WITHIN EASY REACH
Information and controls appear exactly where they are needed.
04
UNINTERRUPTED FOCUS
Less distraction. More focus.
08 / DRIVER ERGONOMICS
ENGINEERED AROUND THE DRIVER.
01
Adjustable position for different driver heights.
PEDAL BOX
02

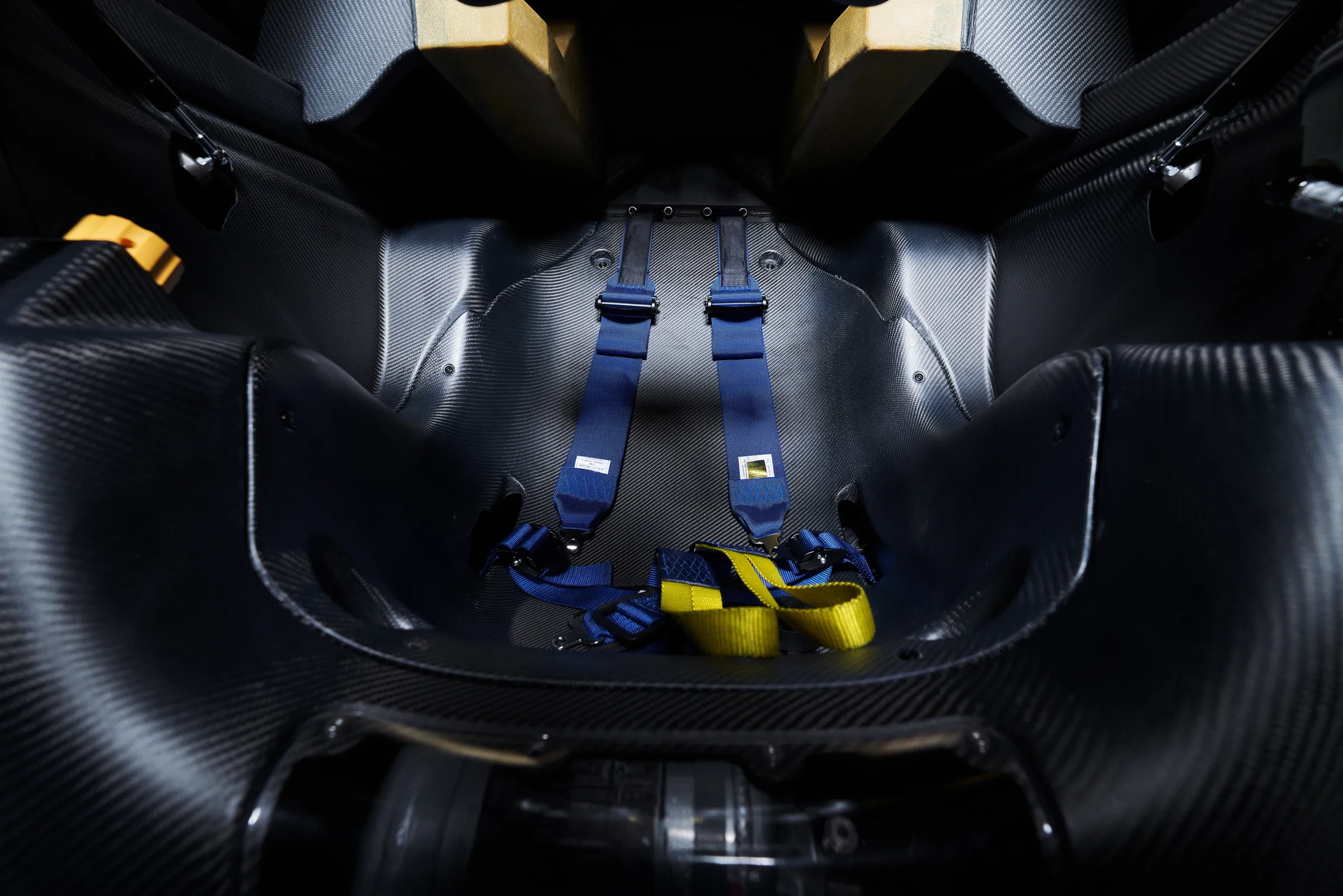

Custom-molded foam insert provides secure support.
SEAT
03
Adjustable steering column and power assistance optimize driver fit and control.
STEERING SYSTEM
04
Adjustable anti-roll bars, ride height and 2-way dampers.
CHASSIS SETUP
11 / Technical Specifications
Technical
Specifications.

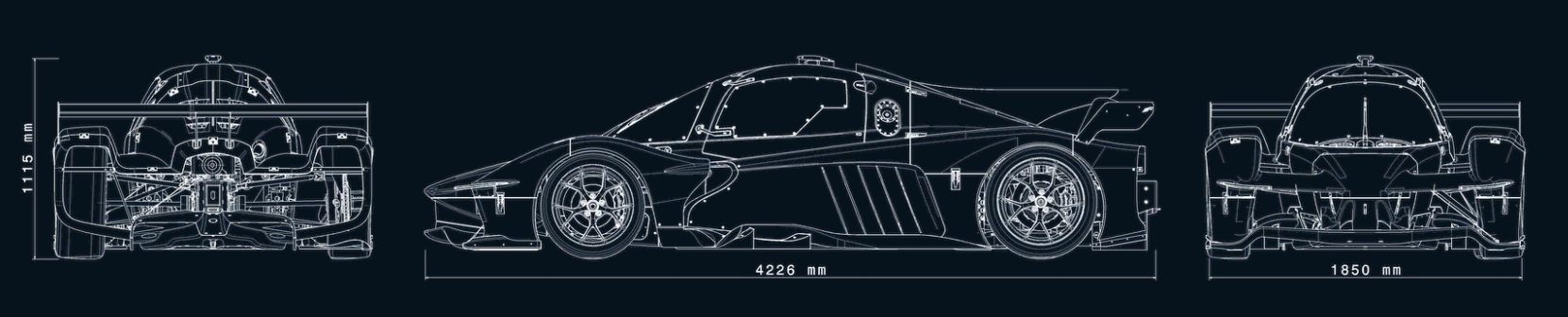

Dimensions & Mass
- Length
- 4,226 mm
- Width
- 1,850 mm
- Height
- 1,115 mm
- Wheelbase
- 2,585 mm
- Vehicle mass*
- 760 kg
Construction
- Chassis
- Tubular spaceframe
- Bodywork
- CFRP
- Glazing
- Polycarbonate
- Fuel capacity
- 80 L
Powertrain
- Engine
- Turbocharged inline-four
- Displacement
- 2,261 cc
- Maximum power
- 451 hp
- Peak torque
- 550 Nm
- Engine management
- Marelli
- Exhaust
- Titanium
Drivetrain
- Type
- 6-speed sequential
- Gearbox
- Hewland TMT-200
- Shift system
- Pneumatic paddle shift
- Limited-slip diff.
- Powerflow multi-plate
Chassis Systems
- Suspension
- Pushrod double wishbone
- Dampers
- Öhlins TTX-36
- Front brake discs
- 345 × 30 mm
- Rear brake discs
- 330 × 25.4 mm
- Brake calipers
- 4-piston, front & rear
- Steering
- Power steering
Wheels & Tires
- Front wheels
- 17 × 8.5J
- Front tires
- 240/610-17
- Rear wheels
- 18 × 10J
- Rear tires
- 260/660-18
Aerodynamics & Systems
- ClA / CdA
- 3.6 / 0.9
- Aero efficiency
- 4.0
- Front aero balance
- 40–50%
- Traction control
- Standard / adjustable
- ABS
- Optional
- Air jacks
- Standard
- Driver height
- 160–190 cm
- Steering wheel / display
- Conspit 290GP
- Data software
- WinTAX 4
* Includes operating fluids; excludes fuel. Specifications may vary with options and applicable series regulations.
